SYLTECH SENSORS
Quick datasheet reference page, please contact [email protected] for any further infomation or support queries.
| Motorsport Temperature Series [MSTS] |
|---|

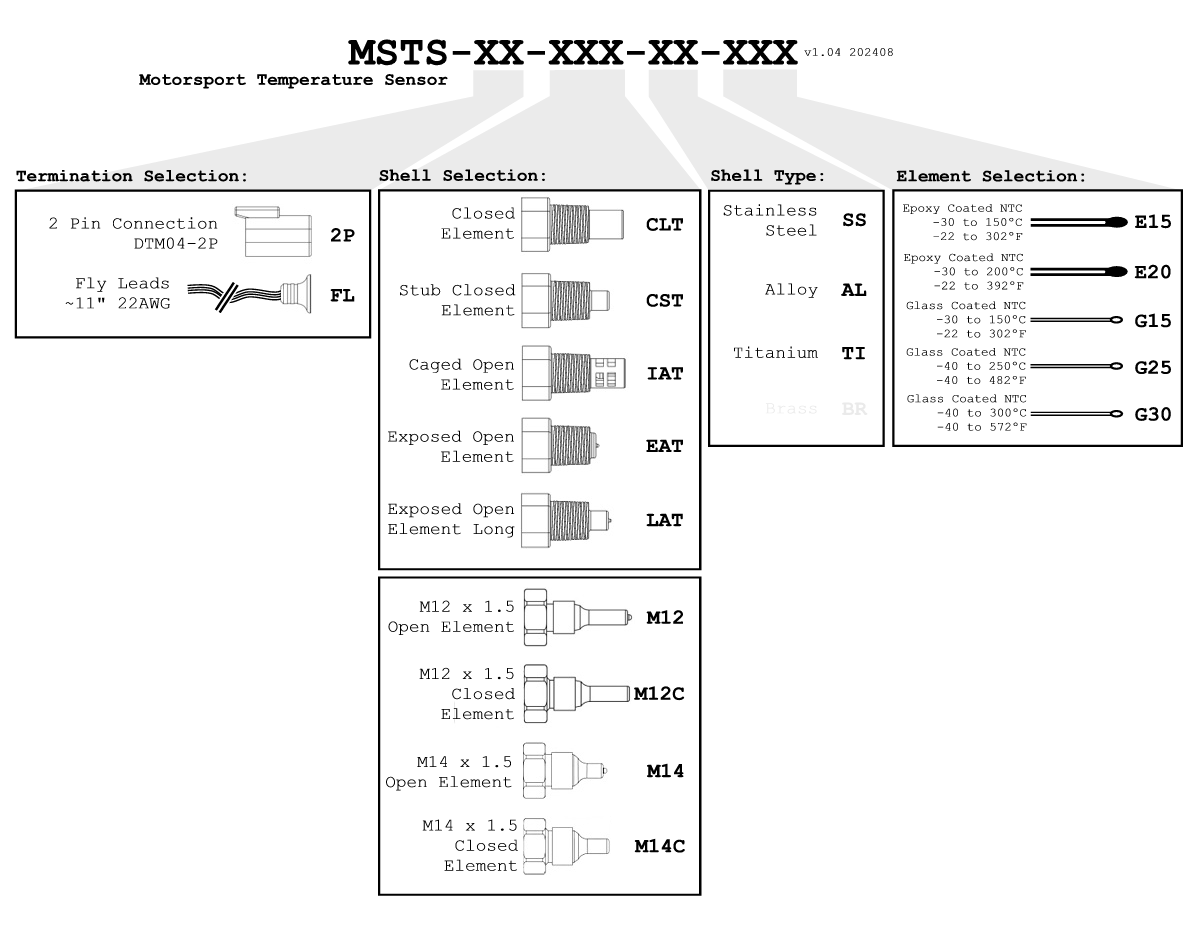

| PN [KEY] | ||
|---|---|---|
 [IMG][OPT] |

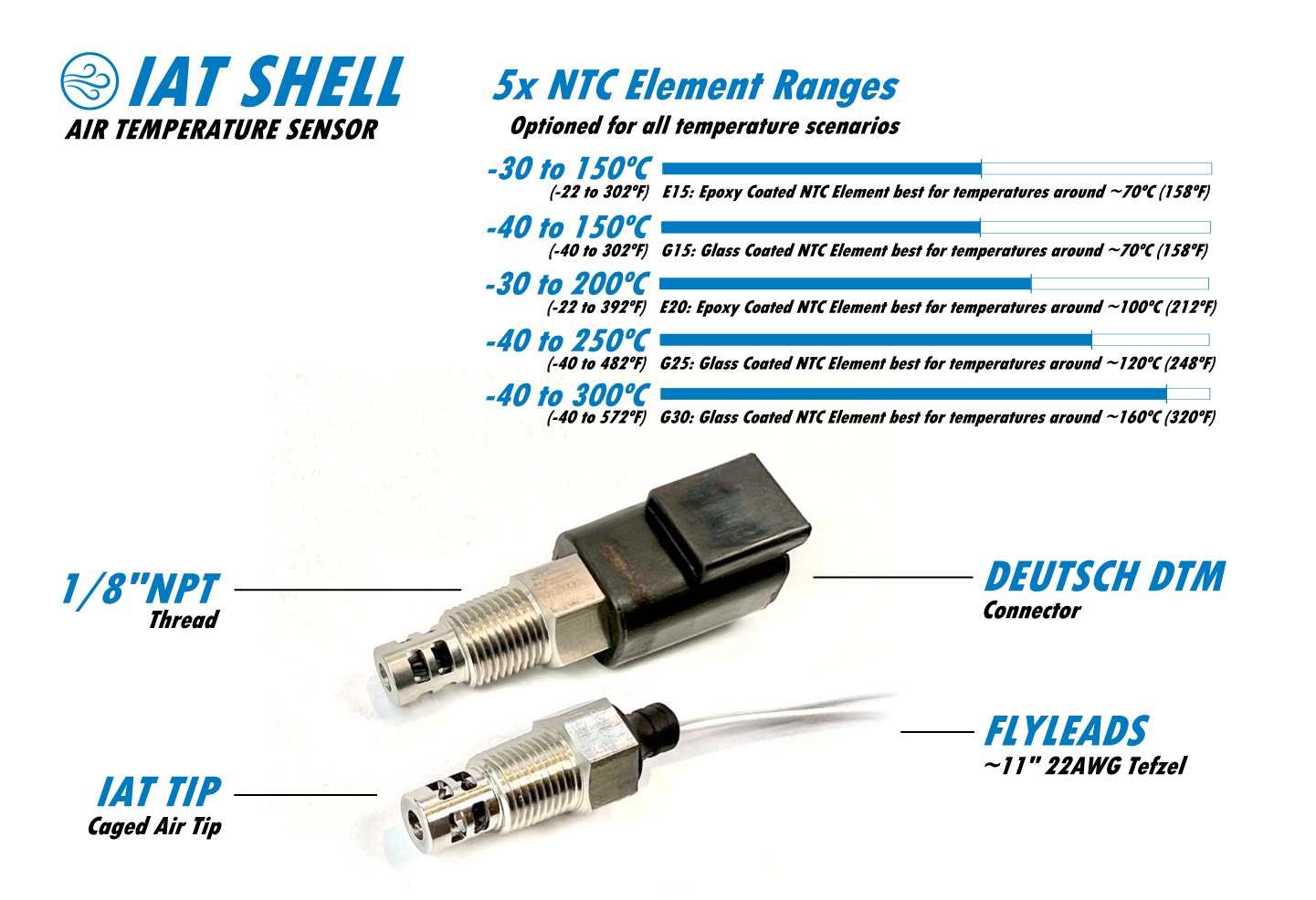

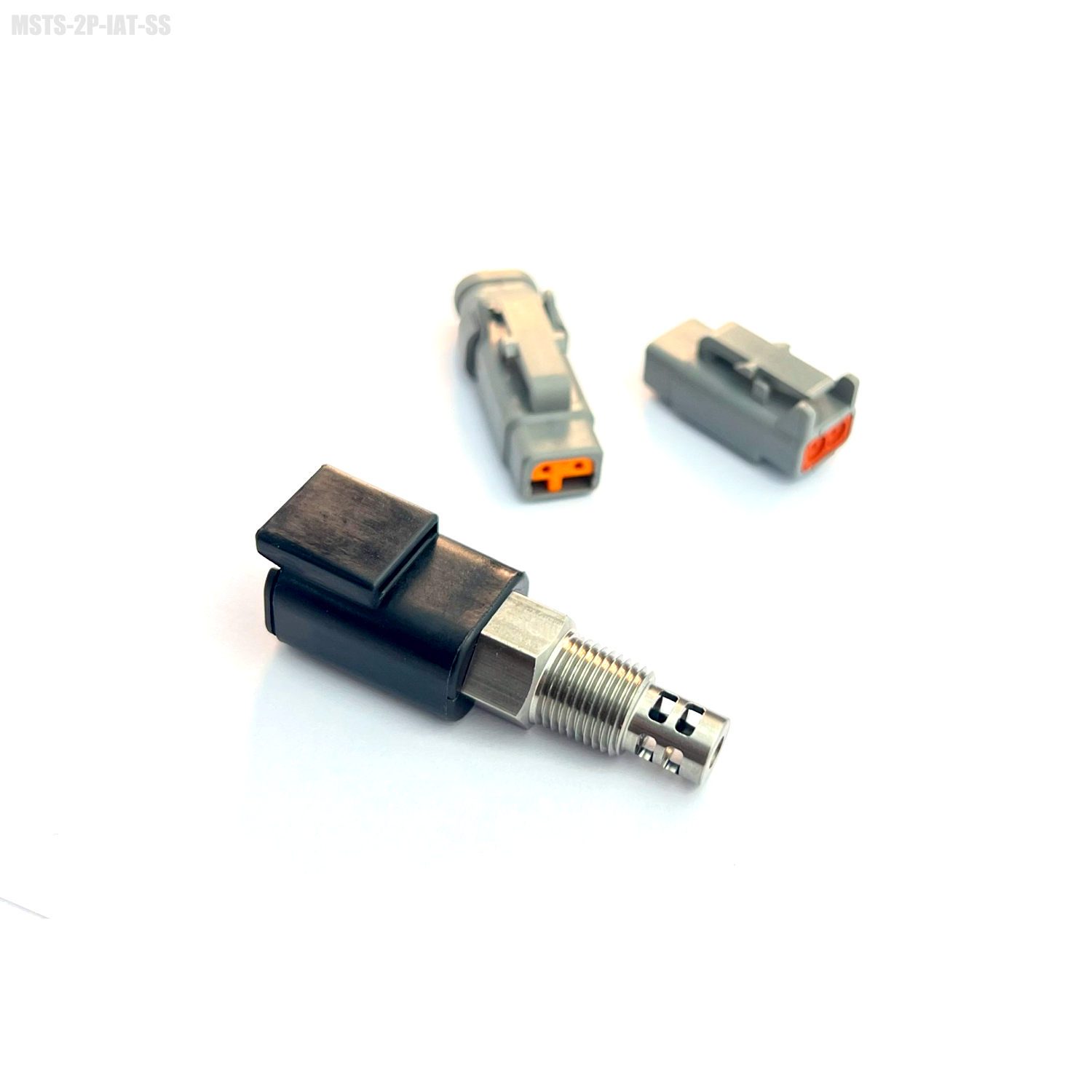

MSTS-2P-IAT-SS-E15 [PDF][XLS][ ][ ][ ]2Pin DTM Connector, 1/8"NPT, Stainless Open Caged Shell, Epoxy Element -30 to 150degC (-22 to 302degF) MSTS-2P-IAT-SS-E20 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Stainless Open Caged Shell, Epoxy Element -30 to 200degC (-22 to 392degF) MSTS-2P-IAT-TI-E15 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Titanium Open Caged Shell, Epoxy Element -30 to 150degC (-22 to 302degF) MSTS-2P-IAT-TI-E20 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Titanium Open Caged Shell, Epoxy Element -30 to 200degC (-22 to 392degF) |
|
 [IMG][OPT] |

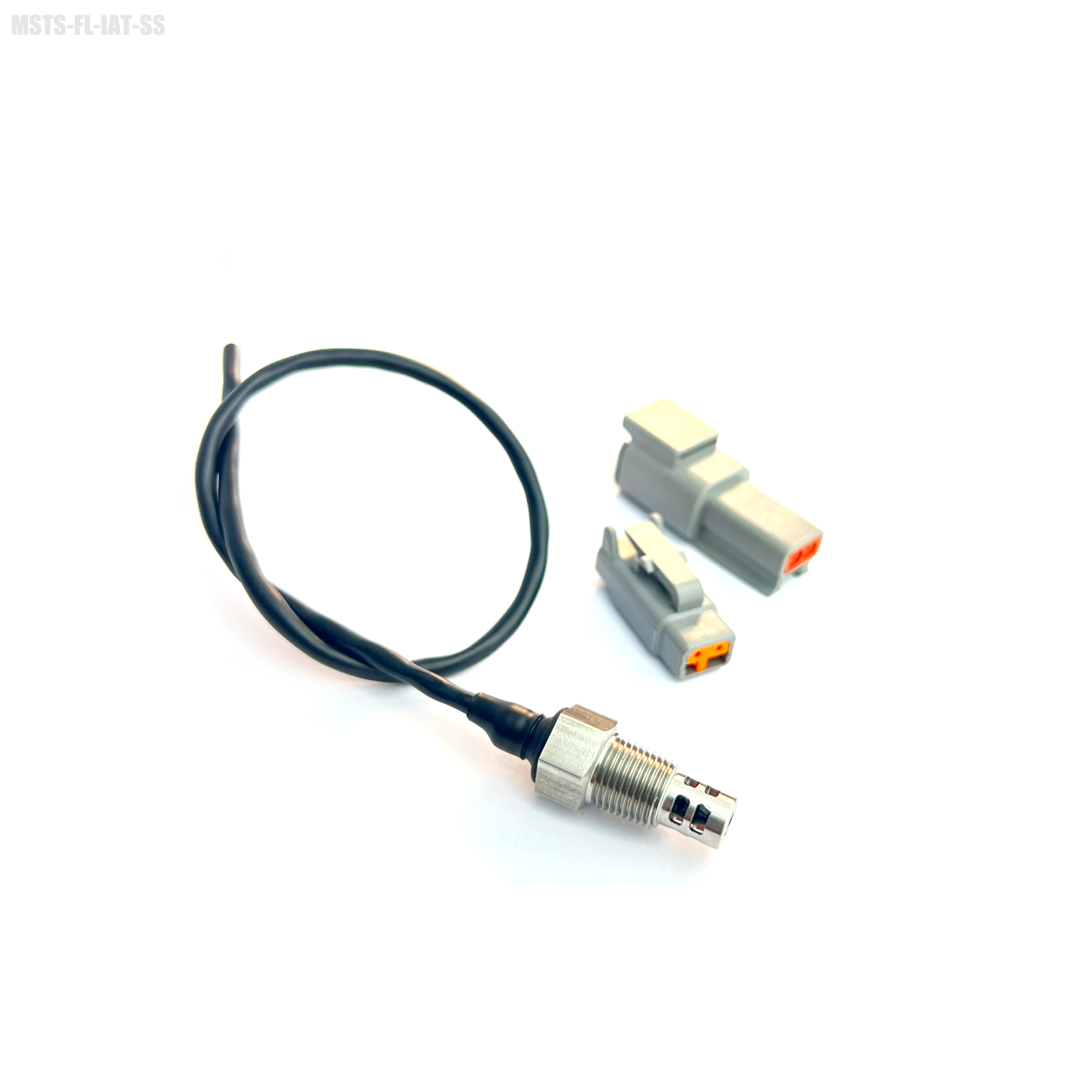

MSTS-FL-IAT-SS-E15 [PDF][XLS][][][] Flyleads, 1/8"NPT, Stainless Open Caged Shell, Epoxy Element -30 to 150degC (-22 to 302degF) MSTS-FL-IAT-SS-E20 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Stainless Open Caged Shell, Epoxy Element -30 to 200degC (-22 to 392degF) MSTS-FL-IAT-TI-E15 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Titanium Open Caged Shell, Epoxy Element -30 to 150degC (-22 to 302degF) MSTS-FL-IAT-TI-E20 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Titanium Open Caged Shell, Epoxy Element -30 to 200degC (-22 to 392degF) |
|
 [IMG][OPT] |

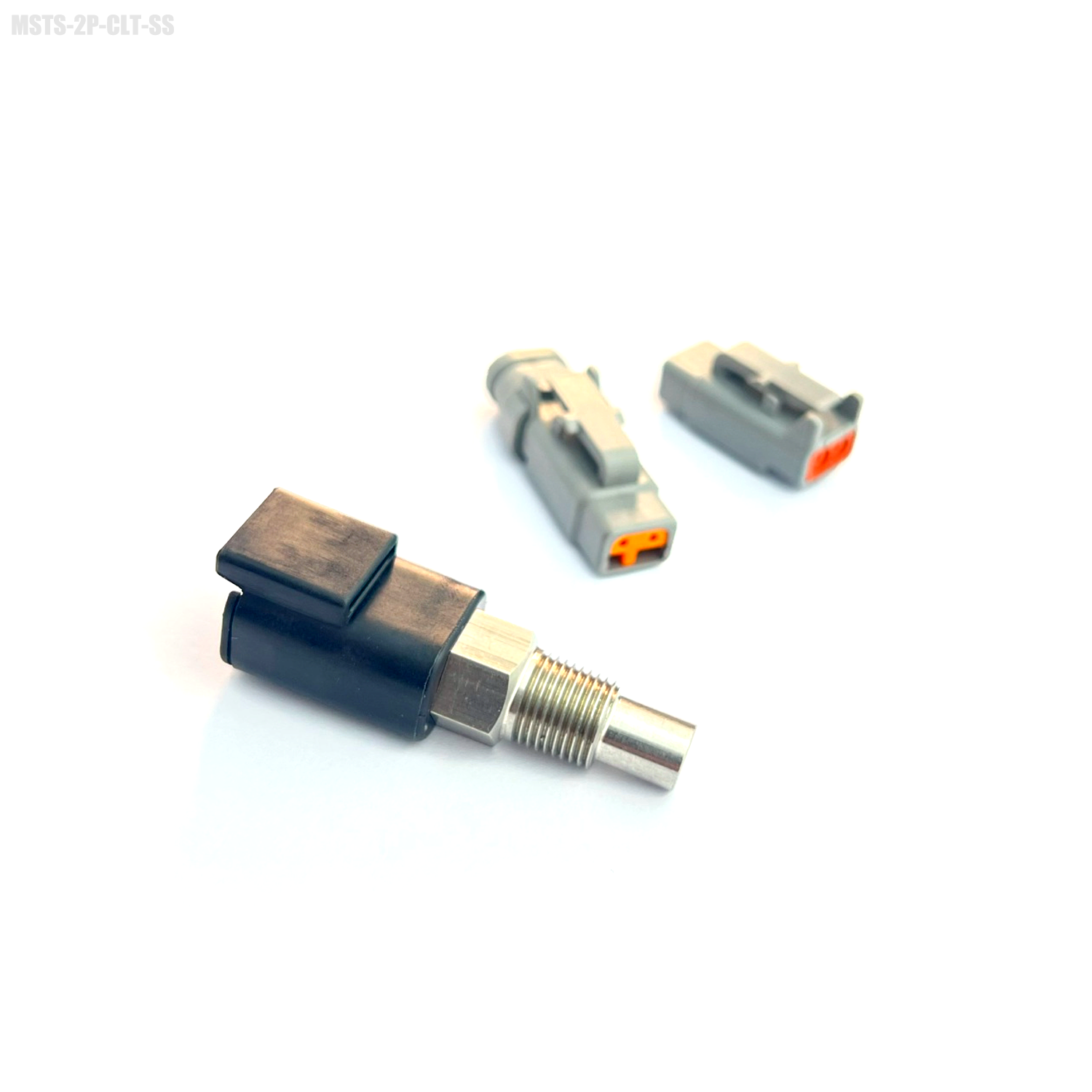

MSTS-2P-CLT-SS-E15 [PDF][XLS][][][] 2Pin DTM Connector, 1/8"NPT, Stainless Closed Shell, Epoxy Element -30 to 150degC (-22 to 302degF) MSTS-2P-CLT-SS-E20 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Stainless Closed Shell, Epoxy Element -30 to 200degC (-22 to 392degF) |
|
 [IMG][OPT] |

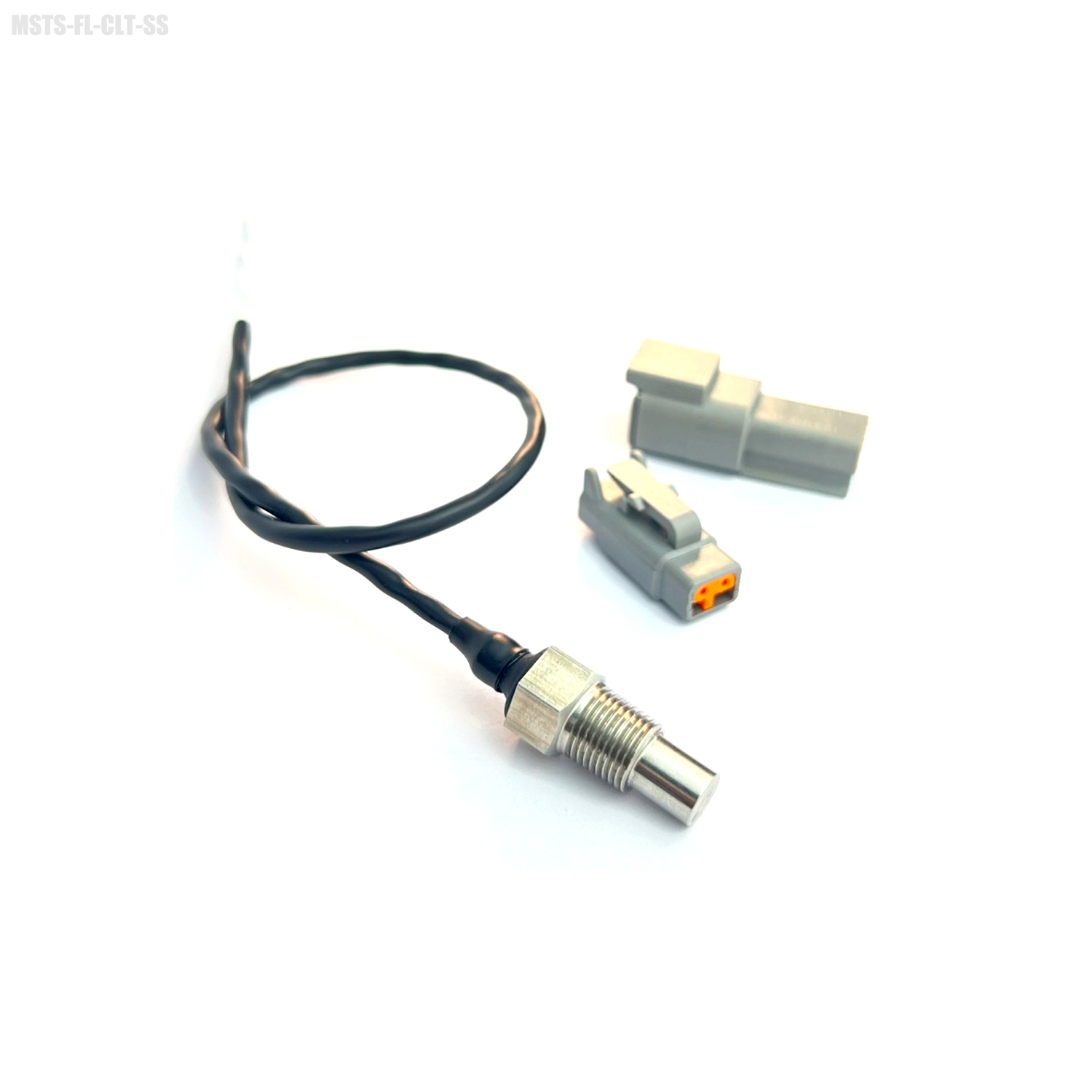

MSTS-FL-CLT-SS-E15 [PDF][XLS][][][] Flyleads, 1/8"NPT, Stainless Closed Shell, Epoxy Element -30 to 150degC (-22 to 302degF) MSTS-FL-CLT-SS-E20 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Stainless Closed Shell, Epoxy Element -30 to 200degC (-22 to 392degF) |
|
 [IMG][OPT] |

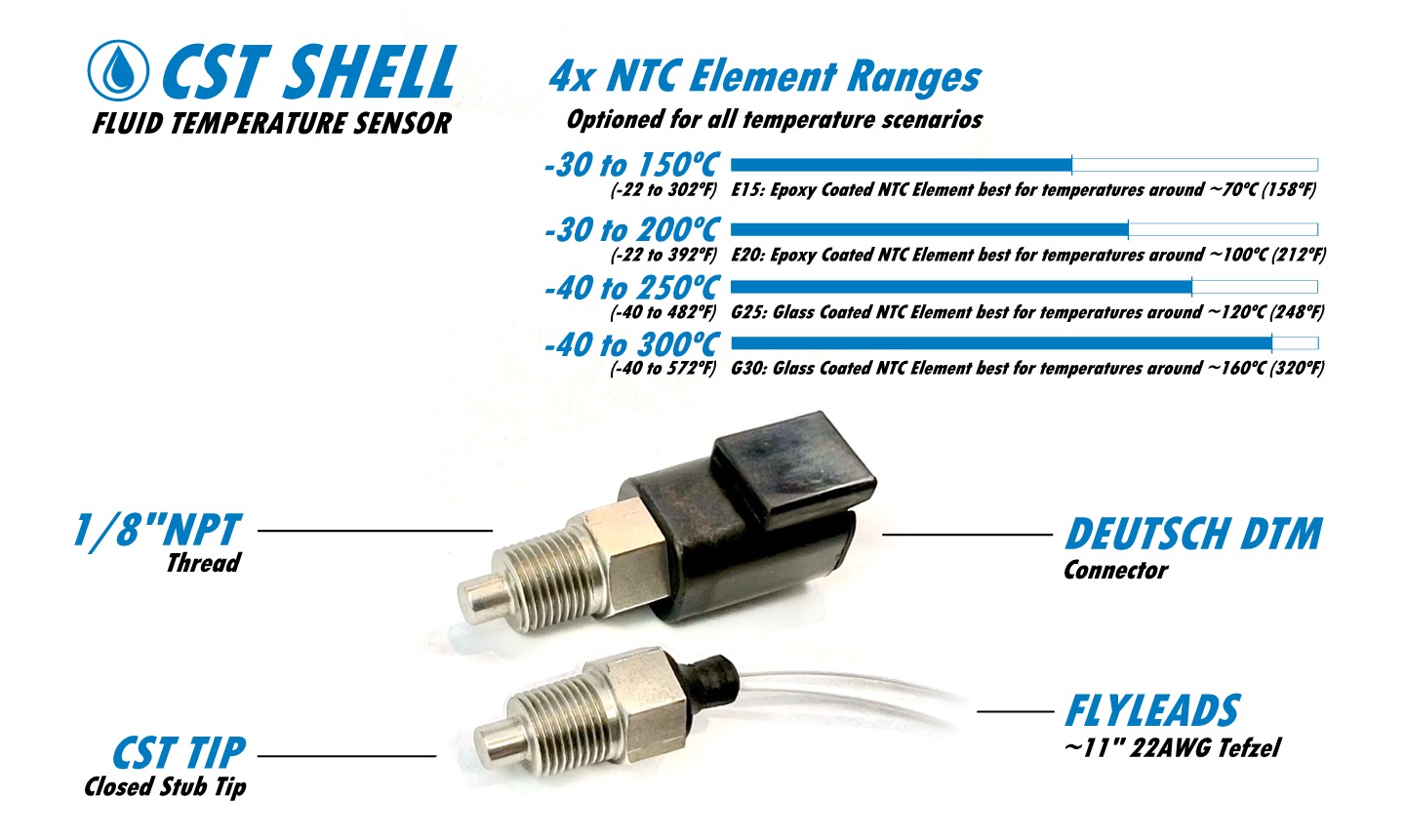

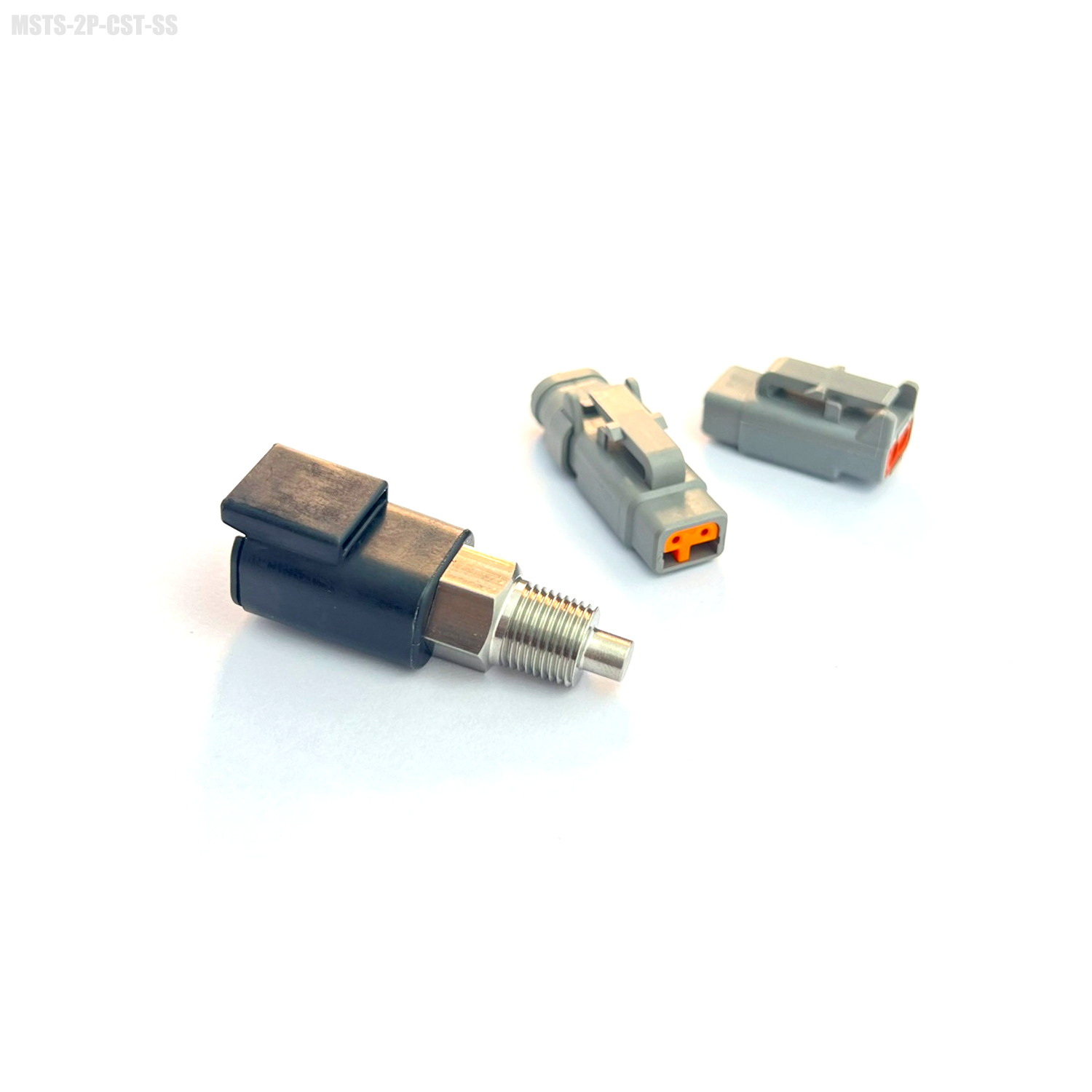

MSTS-2P-CST-SS-E15 [PDF][XLS][][][] 2Pin DTM Connector, 1/8"NPT, Stainless Closed Short Shell, Epoxy Element -30 to 150degC (-22 to 302degF) MSTS-2P-CST-SS-E20 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Stainless Closed Short Shell, Epoxy Element -30 to 200degC (-22 to 392degF) |
|
 [IMG][OPT] |

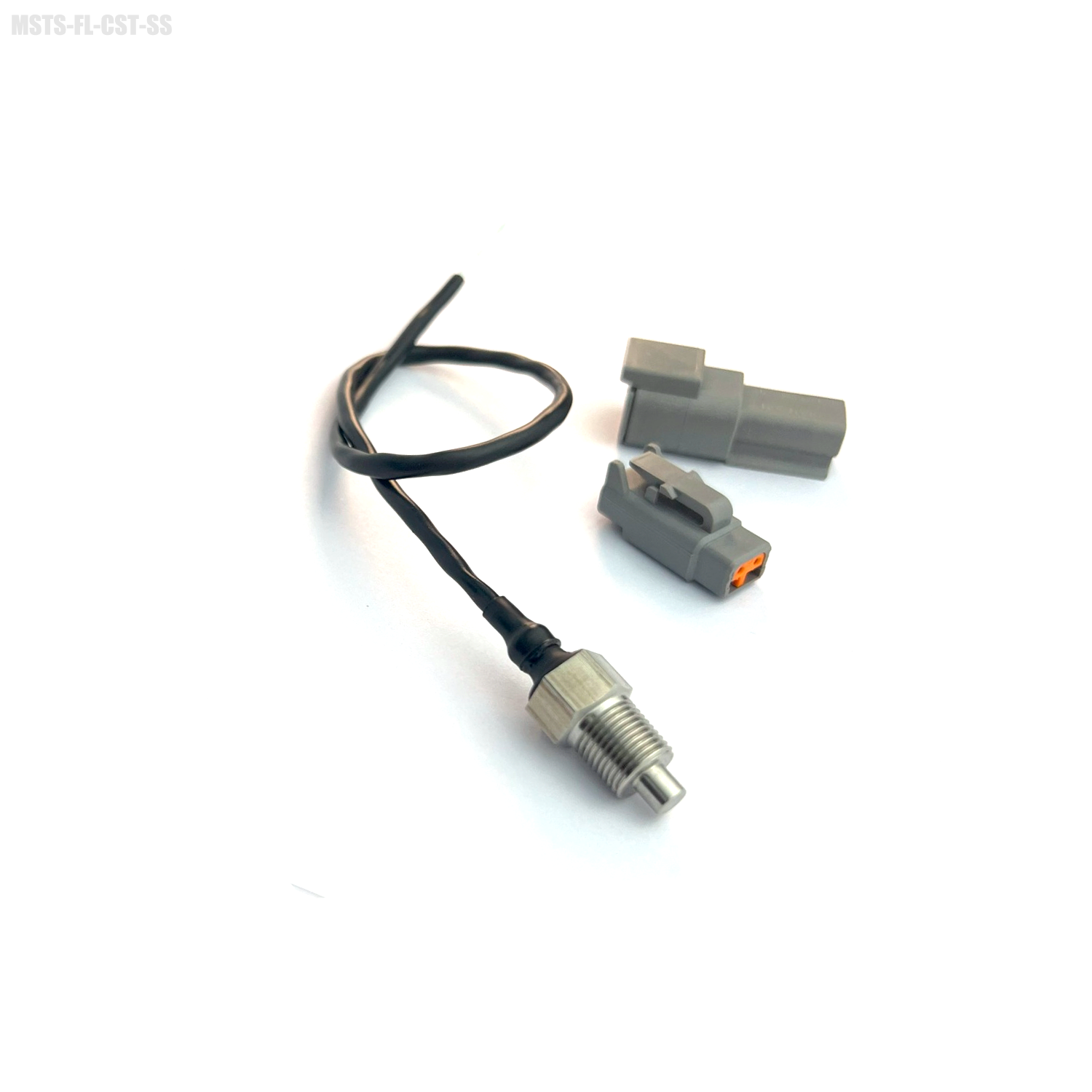

MSTS-FL-CST-SS-E15 [PDF][XLS][][][] Flyleads, 1/8"NPT, Stainless Closed Short Shell, Epoxy Element -30 to 150degC (-22 to 302degF) MSTS-FL-CST-SS-E20 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Stainless Closed Short Shell, Epoxy Element -30 to 200degC (-22 to 392degF) |
|
 [IMG][OPT] |

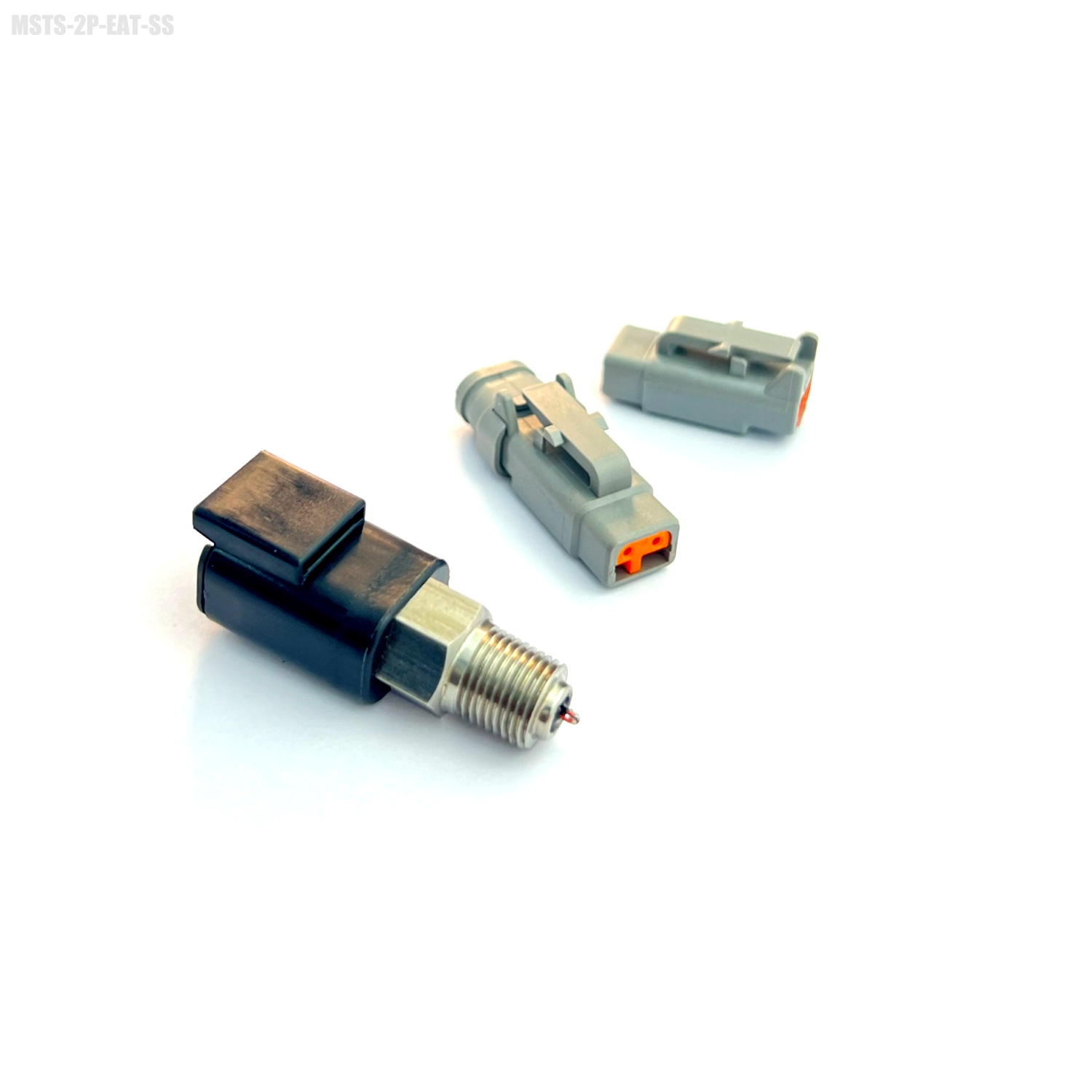

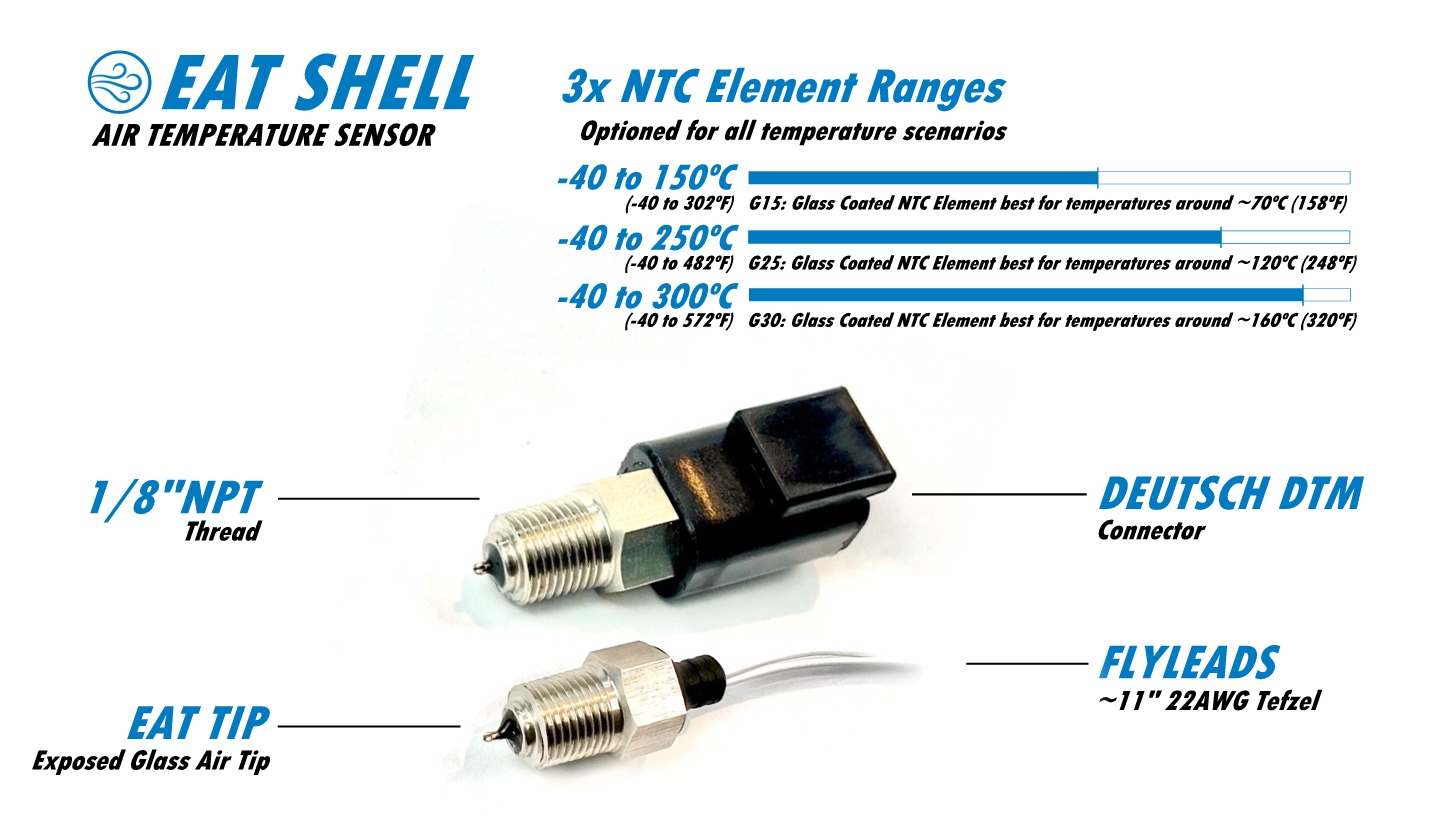

MSTS-2P-EAT-SS-G15 [PDF][XLS][][][] 2Pin DTM Connector, 1/8"NPT, Stainless Open Shell, Glass Element -30 to 150degC (-22 to 302degF) MSTS-2P-EAT-SS-G25 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Stainless Open Shell, Glass Element -40 to 250degC (-40 to 482degF) MSTS-2P-EAT-SS-G30 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Stainless Open Shell, Glass Element -40 to 300degC (-40 to 572degF) |
|
 [IMG][OPT] |

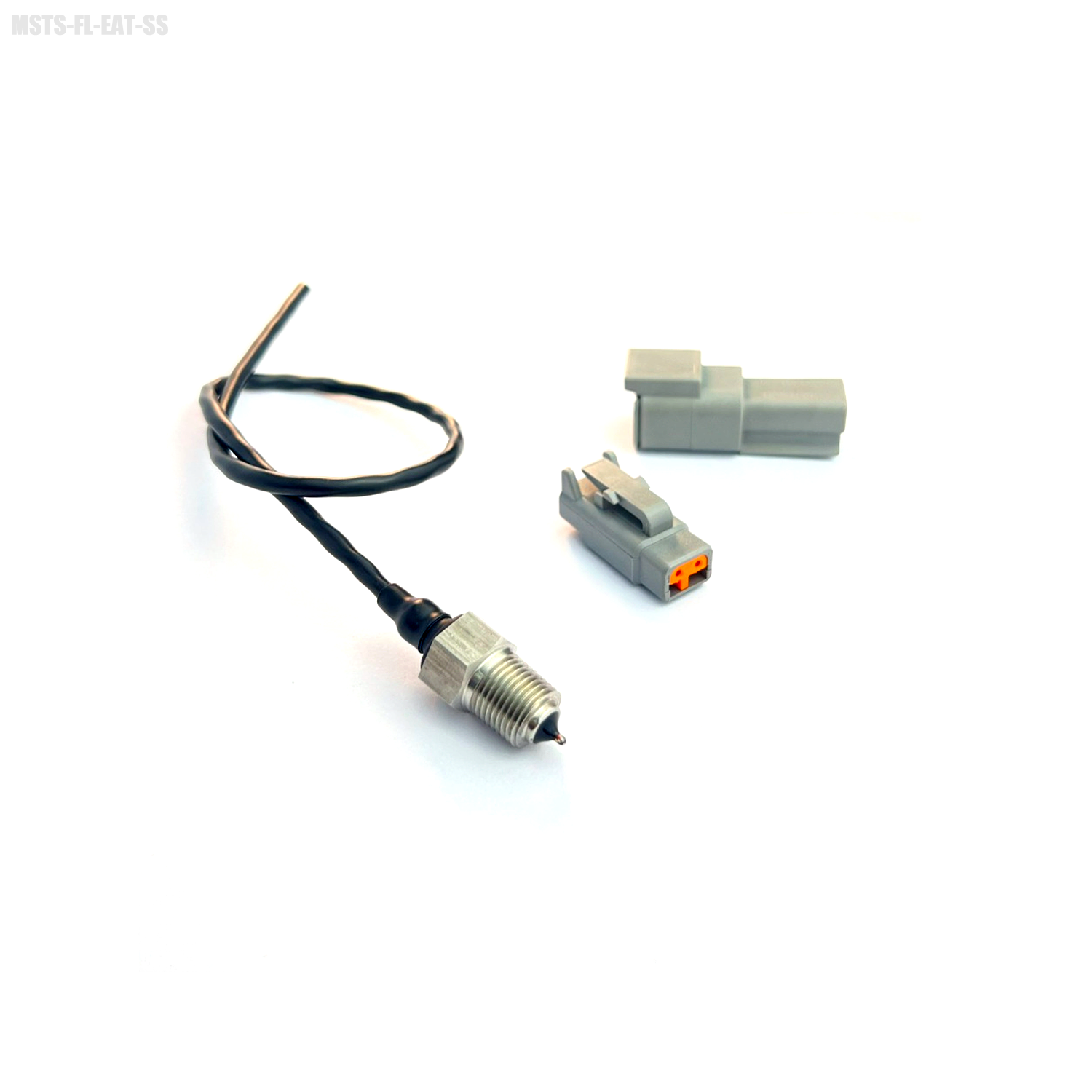

MSTS-FL-EAT-SS-G15 [PDF][XLS][][][] Flyleads, 1/8"NPT, Stainless Open Shell, Glass Element -30 to 150degC (-22 to 302degF) MSTS-FL-EAT-SS-G25 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Stainless Open Shell, Glass Element -40 to 250degC (-40 to 482degF) MSTS-FL-EAT-SS-G30 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Stainless Open Shell, Glass Element -40 to 300degC (-40 to 572degF) |
|
 [IMG][OPT] |

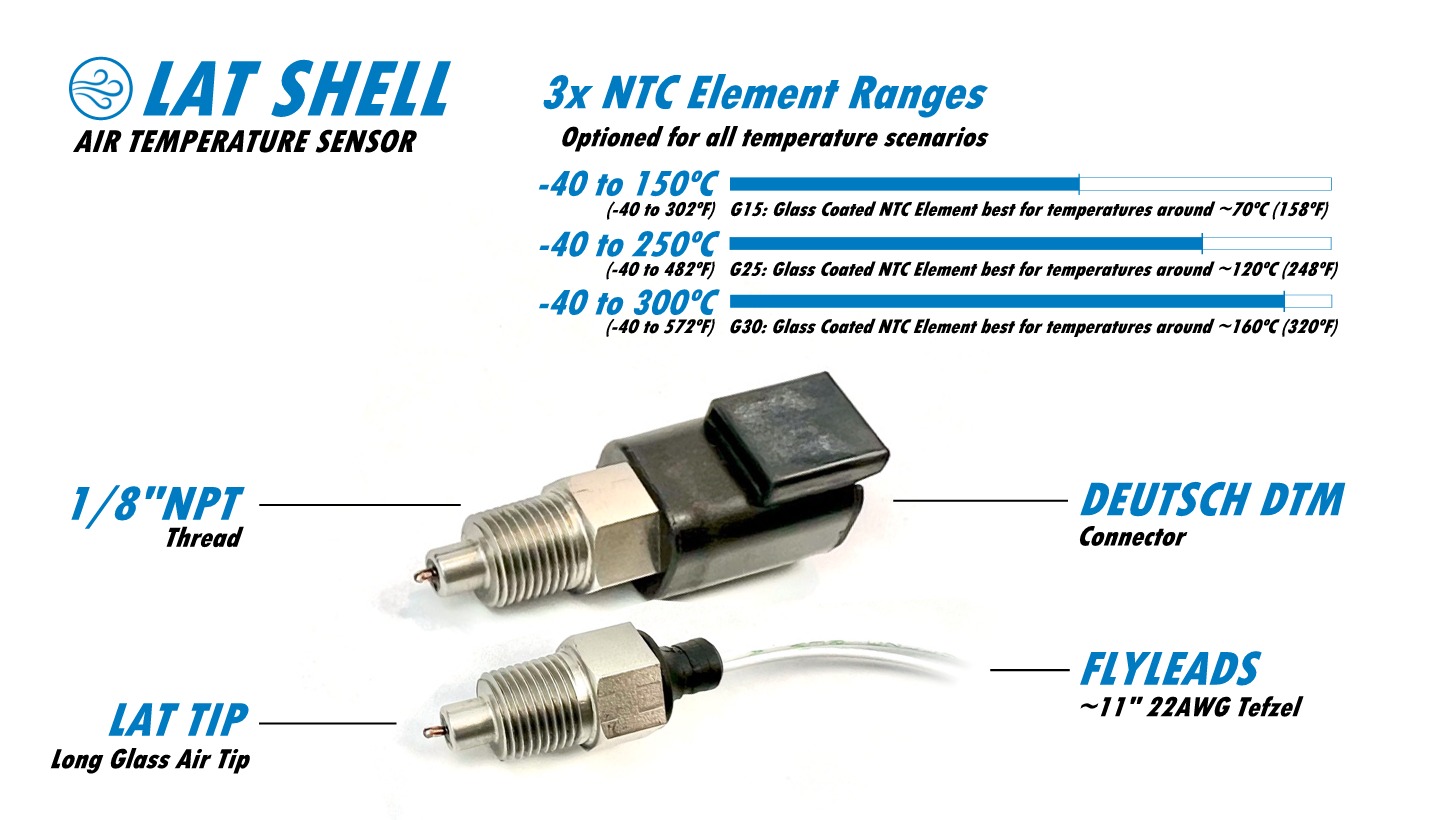

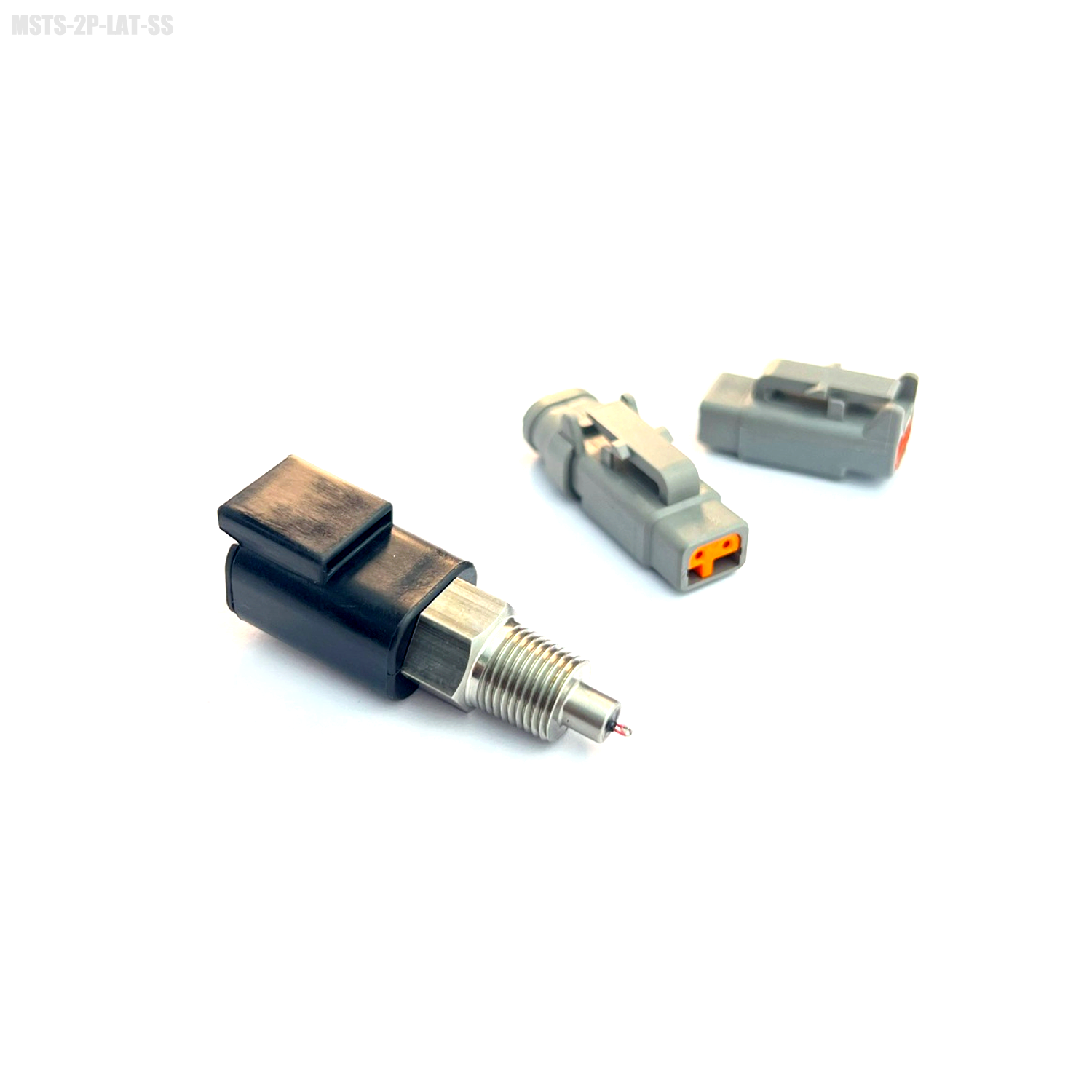

MSTS-2P-LAT-SS-G15 [PDF][XLS][][][] 2Pin DTM Connector, 1/8"NPT, Stainless Open Shell, Glass Element -30 to 150degC (-22 to 302degF) MSTS-2P-LAT-SS-G25 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Stainless Open Shell, Glass Element -40 to 250degC (-40 to 482degF) MSTS-2P-LAT-SS-G30 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Stainless Open Shell, Glass Element -40 to 300degC (-40 to 572degF) MSTS-2P-LAT-TI-G15 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Titanium Open Shell, Glass Element -30 to 150degC (-22 to 302degF) MSTS-2P-LAT-TI-G25 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Titanium Open Shell, Glass Element -40 to 250degC (-40 to 482degF) MSTS-2P-LAT-TI-G30 [PDF][XLS][ ][][]2Pin DTM Connector, 1/8"NPT, Titanium Open Shell, Glass Element -40 to 300degC (-40 to 572degF) |
|
 [IMG][OPT] |

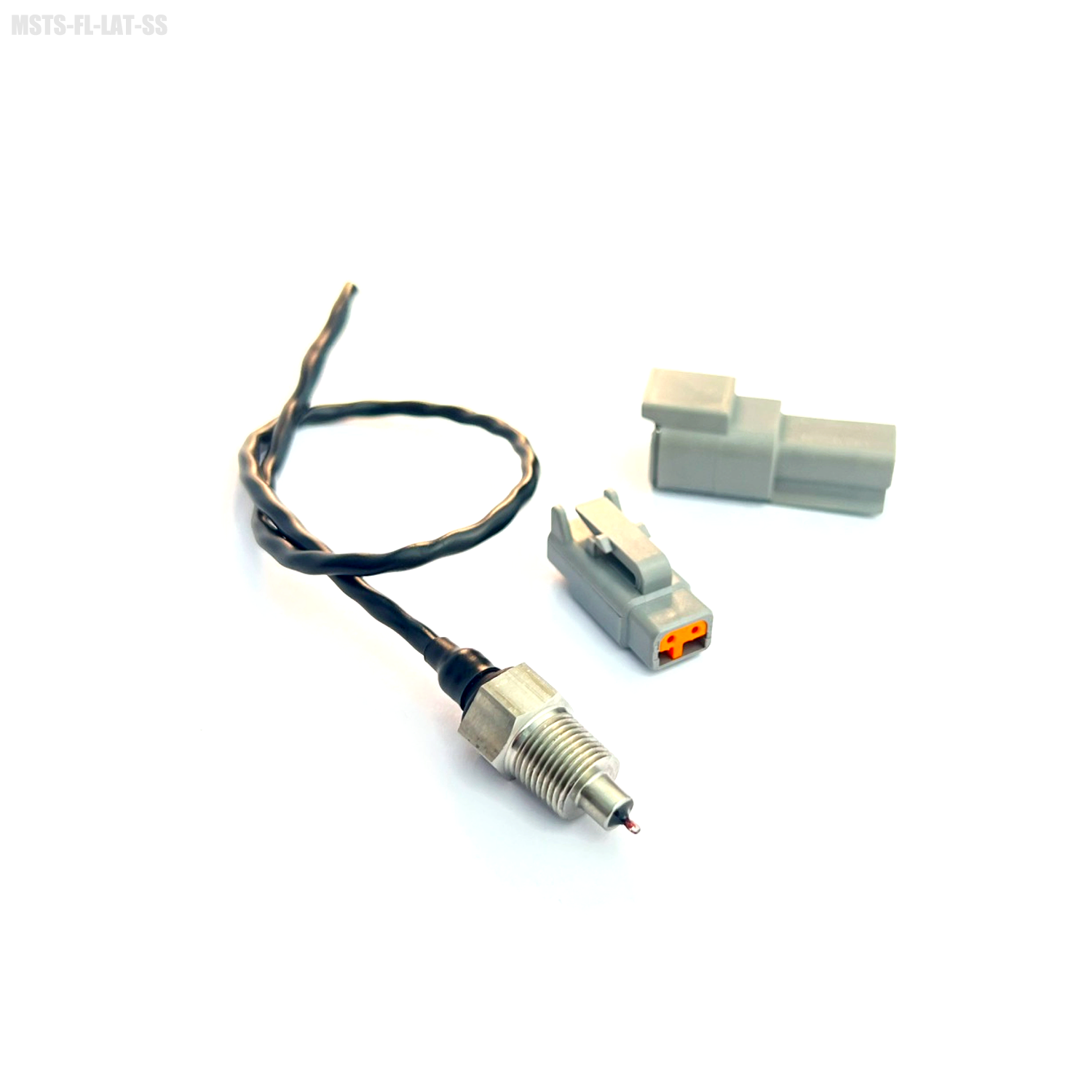

MSTS-FL-LAT-SS-G15 [PDF][XLS][][][] Flyleads, 1/8"NPT, Stainless Open Shell, Glass Element -30 to 150degC (-22 to 302degF) MSTS-FL-LAT-SS-G25 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Stainless Open Shell, Glass Element -40 to 250degC (-40 to 482degF) MSTS-FL-LAT-SS-G30 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Stainless Open Shell, Glass Element -40 to 300degC (-40 to 572degF) MSTS-FL-LAT-TI-G15 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Titanium Open Shell, Glass Element -30 to 150degC (-22 to 302degF) MSTS-FL-LAT-TI-G25 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Titanium Open Shell, Glass Element -40 to 250degC (-40 to 482degF) MSTS-FL-LAT-TI-G30 [PDF][XLS][ ][][]Flyleads, 1/8"NPT, Titanium Open Shell, Glass Element -40 to 300degC (-40 to 572degF) |
|
 [IMG] |

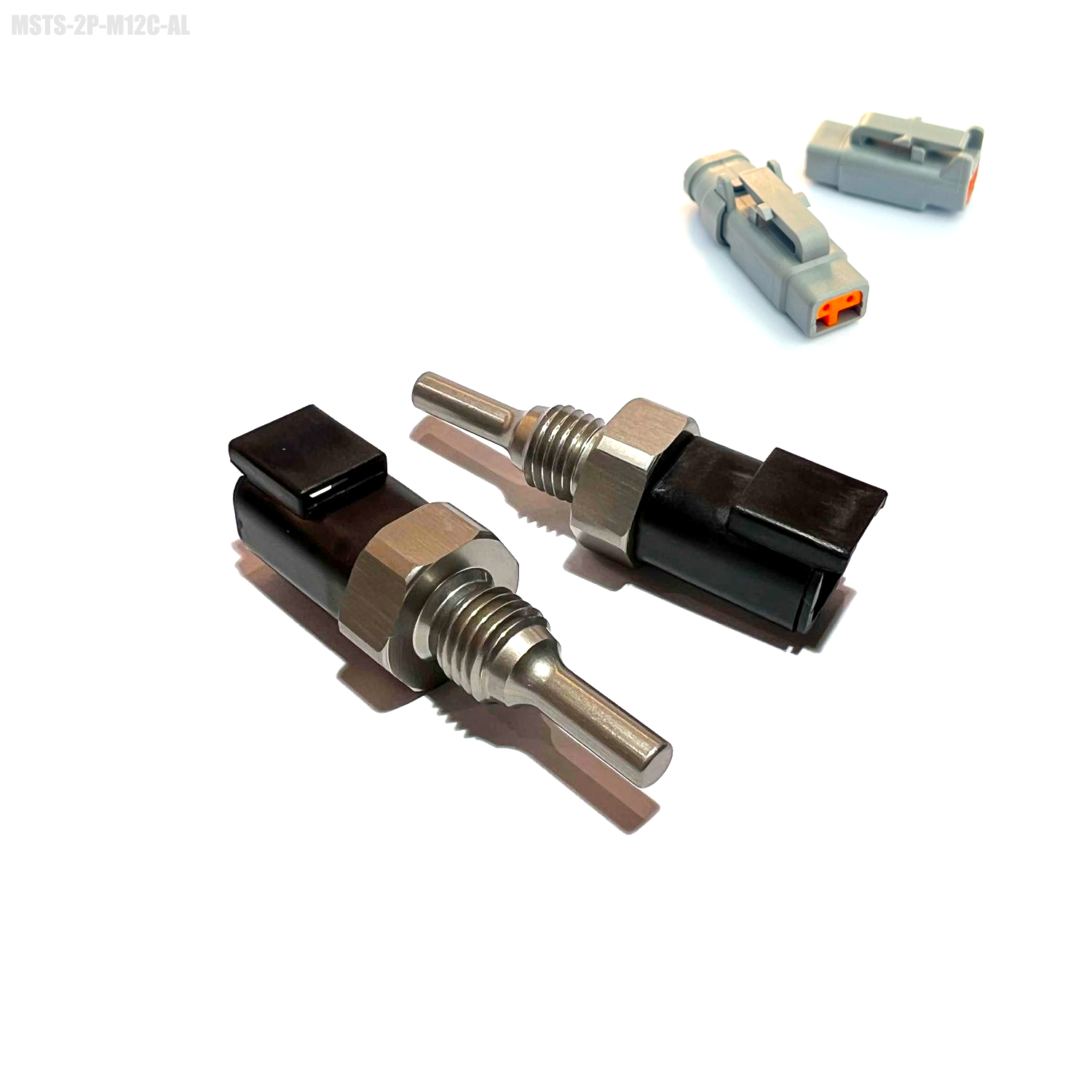

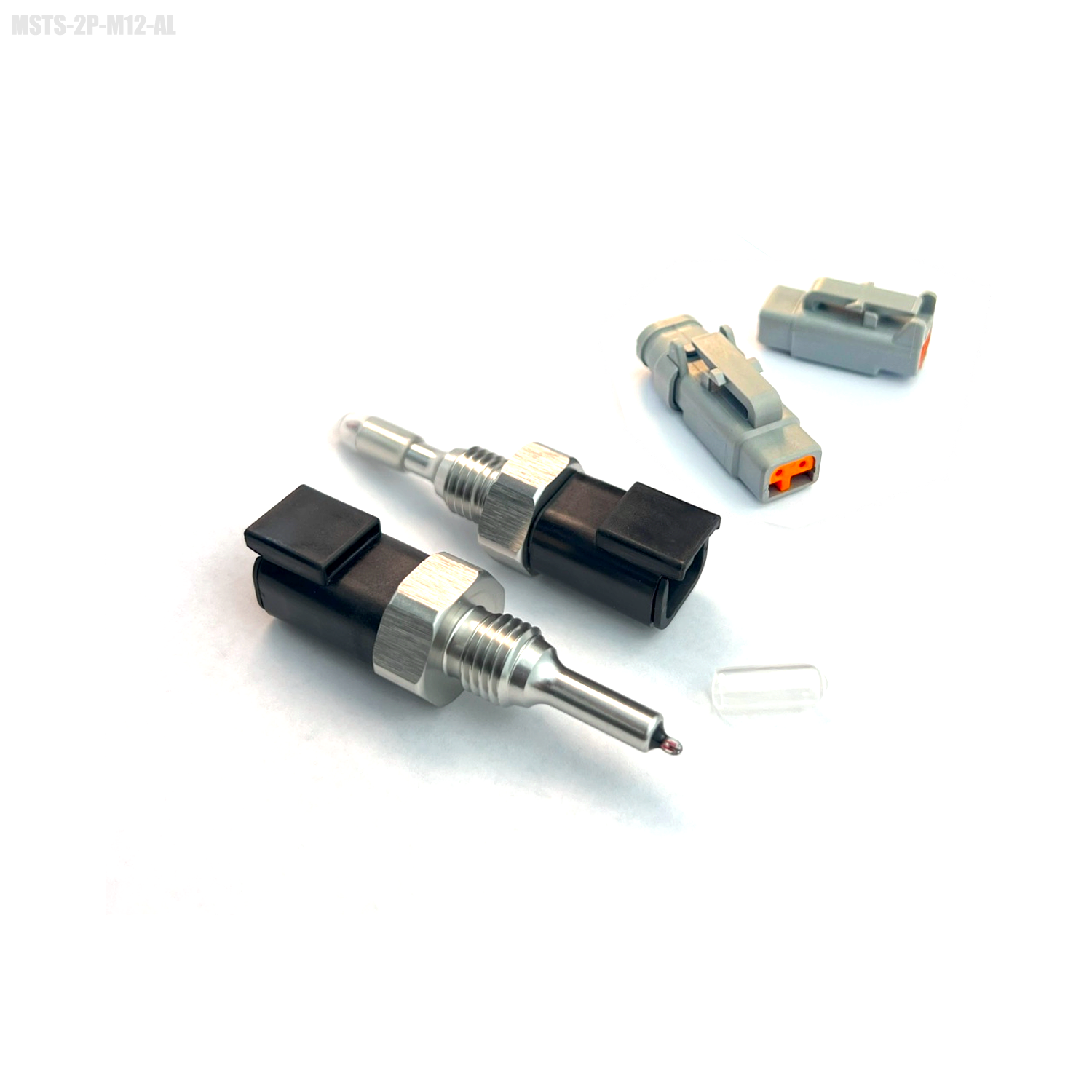

MSTS-2P-M12-AL-G15 [PDF][XLS][][][] 2Pin DTM Connector, M12x1.5, Alloy Open Shell, Glass Element GM OEM IAT Calibration -30 to 150degC (-22 to 302degF) MSTS-2P-M12-AL-RB26 [PDF][XLS] 2Pin DTM Connector, M12x1.5, Alloy Open Shell, Glass Element OEM RB26 IAT Calibration -30 to 150degC (-22 to 302degF) |
|
 [IMG] |

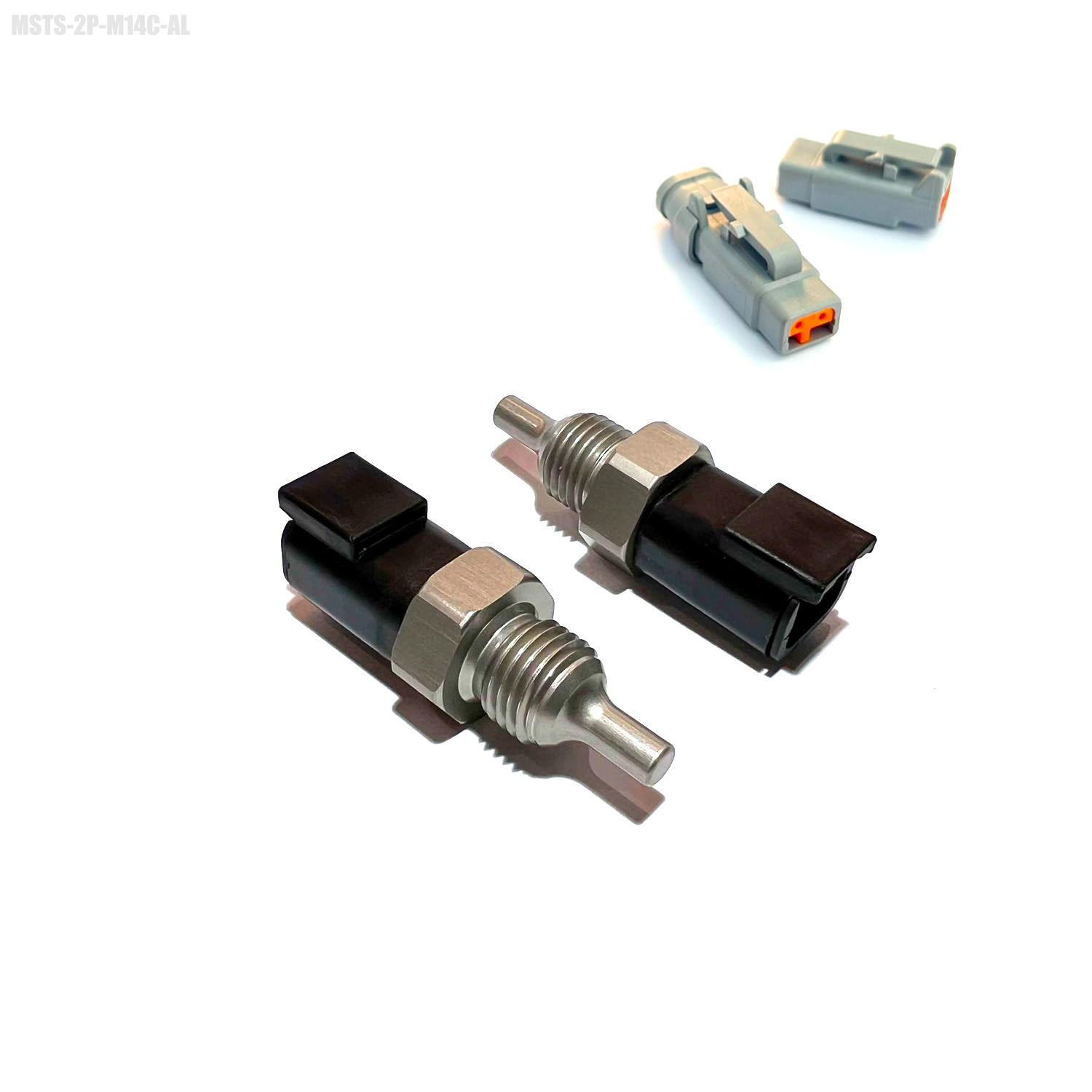

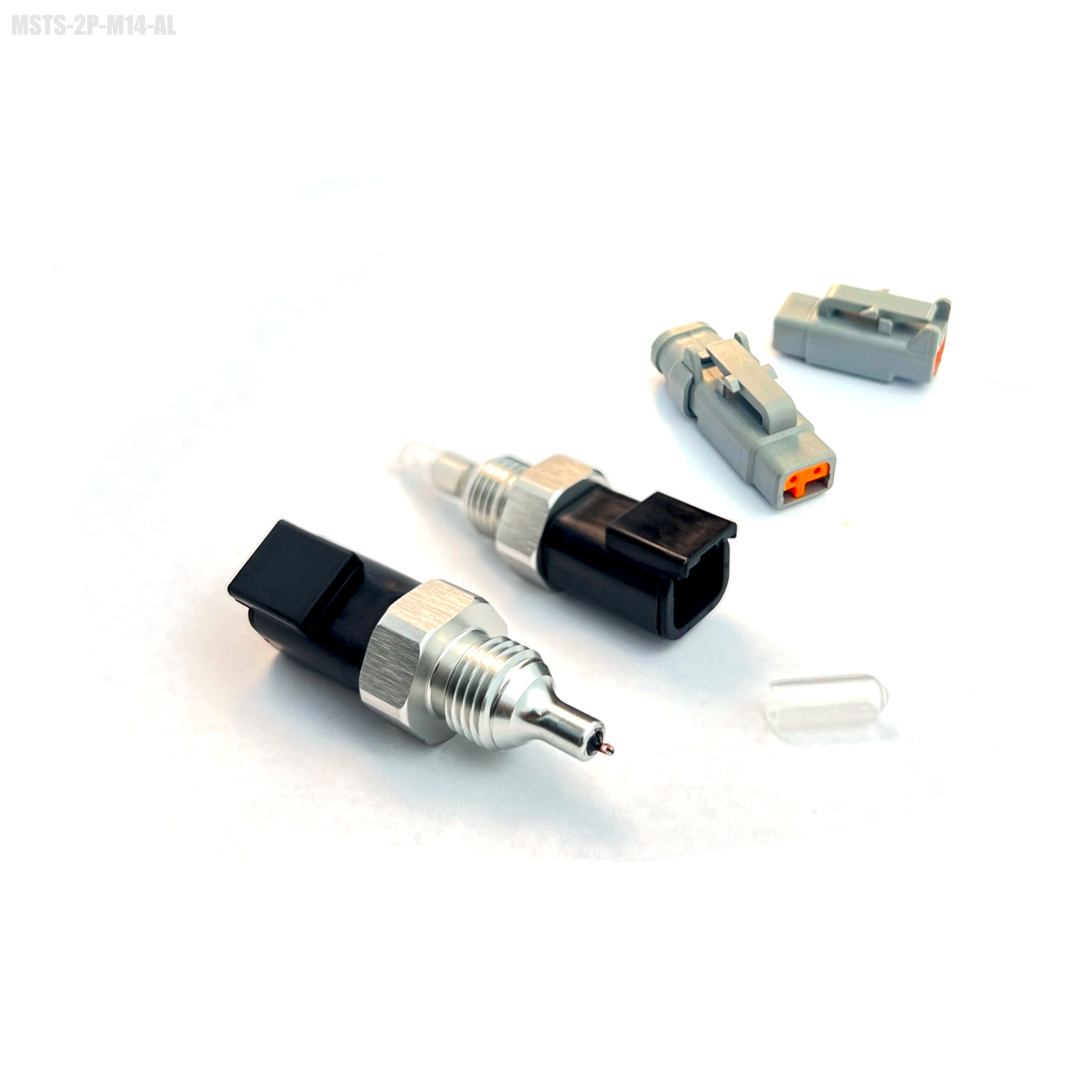

MSTS-2P-M14-AL-G15 [PDF][XLS][][][] 2Pin DTM Connector, M14x1.5, Alloy Open Shell, Glass Element GM OEM IAT Calibration -30 to 150degC (-22 to 302degF) MSTS-2P-M14-AL-G25 [PDF][XLS][ ][][]2Pin DTM Connector, M14x1.5, Alloy Open Shell, Glass Element -40 to 250degC (-40 to 482degF) MSTS-2P-M14-AL-G30 [PDF][XLS][ ][][]2Pin DTM Connector, M14x1.5, Alloy Open Shell, Glass Element -40 to 300degC (-40 to 572degF) |
|
| Deutsch 2Pin DTM Connector | Shell / Bootable Shell / Front Pin Lock / Socket |
|
| Calibration Tables | [E15][E20][G15][G25][G30][RB26] |
| Motorsport Precision Pressure Series [MSPP] |
|---|

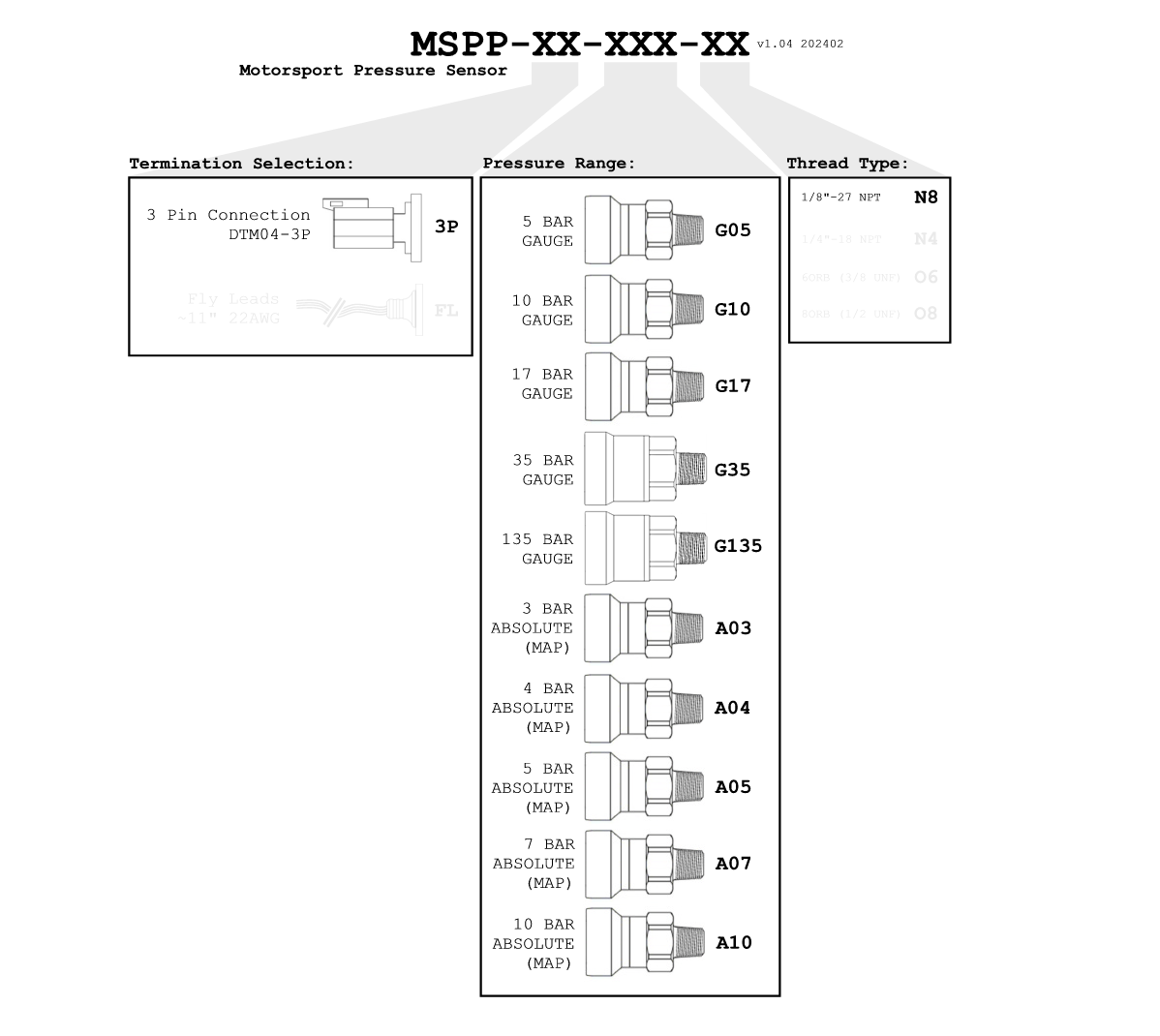

| PN [KEY] | |
|---|---|
 [IMG] |

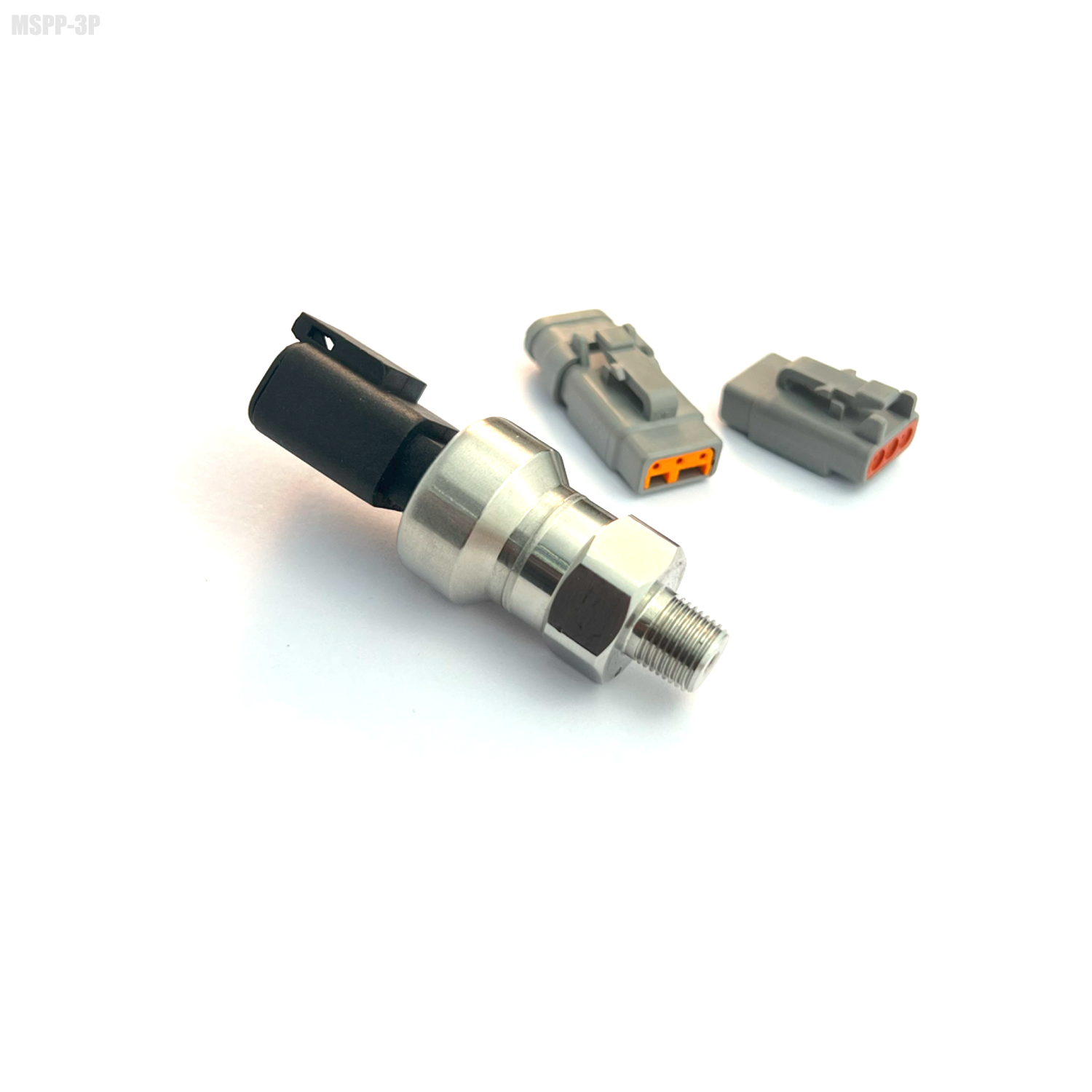

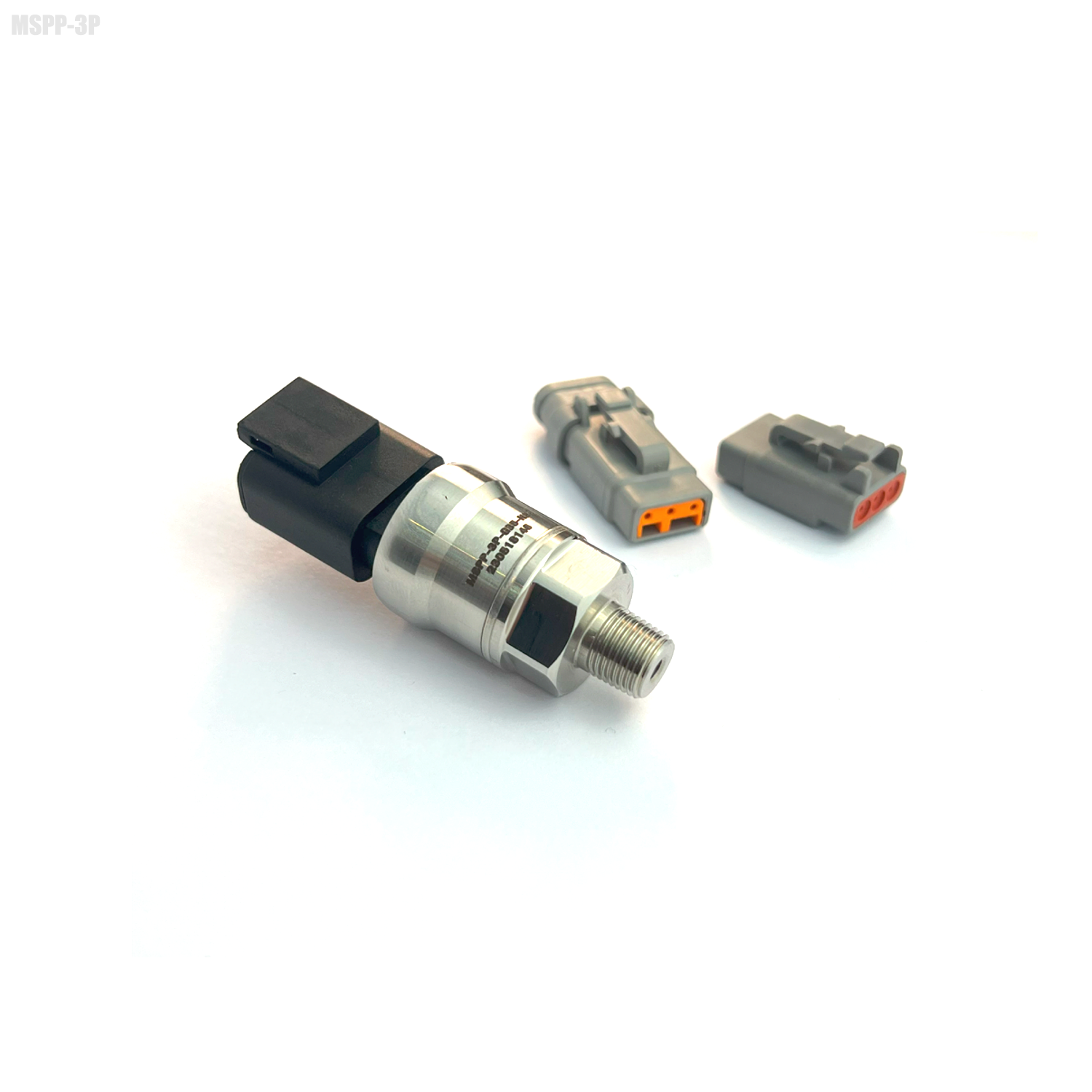

MSPP-3P-A03-N8 [PDF][][][] 3Pin DTM Connector, 1/8"NPT, 3BAR MAP / ABSOLUTE PRESSURE MSPP-3P-A04-N8 [PDF][ ][][]3Pin DTM Connector, 1/8"NPT, 4BAR MAP / ABSOLUTE PRESSURE MSPP-3P-A05-N8 [PDF][ ][][]3Pin DTM Connector, 1/8"NPT, 5BAR MAP / ABSOLUTE PRESSURE MSPP-3P-A07-N8 [PDF][ ][][]3Pin DTM Connector, 1/8"NPT, 7BAR MAP / ABSOLUTE PRESSURE MSPP-3P-A10-N8 [PDF][ ][][]3Pin DTM Connector, 1/8"NPT, 10BAR MAP / ABSOLUTE PRESSURE MSPP-3P-G05-N8 [PDF][ ][][]3Pin DTM Connector, 1/8"NPT, 5BAR GAUGE PRESSURE MSPP-3P-G10-N8 [PDF][ ][][]3Pin DTM Connector, 1/8"NPT, 10BAR GAUGE PRESSURE MSPP-3P-G17-N8 [PDF][ ][][]3Pin DTM Connector, 1/8"NPT, 17BAR GAUGE PRESSURE |
 [IMG] |
MSPP-3P-G35-N8 [PDF][][][] 3Pin DTM Connector, 1/8"NPT, 35BAR GAUGE PRESSURE MSPP-3P-G135-N8 [PDF][ ][][]3Pin DTM Connector, 1/8"NPT, 135BAR GAUGE PRESSURE |
| Deutsch DTM 3 Pin Connector | Shell / Bootable Shell / Front Pin Lock / Socket |

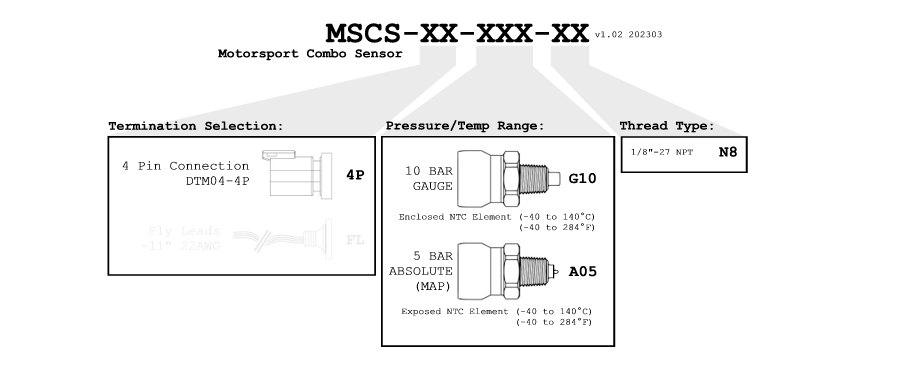

| Motorsport Combination Pressure & Temperature Series [MSCS] |
|---|
| PN [KEY] | |
|---|---|
 [IMG] |

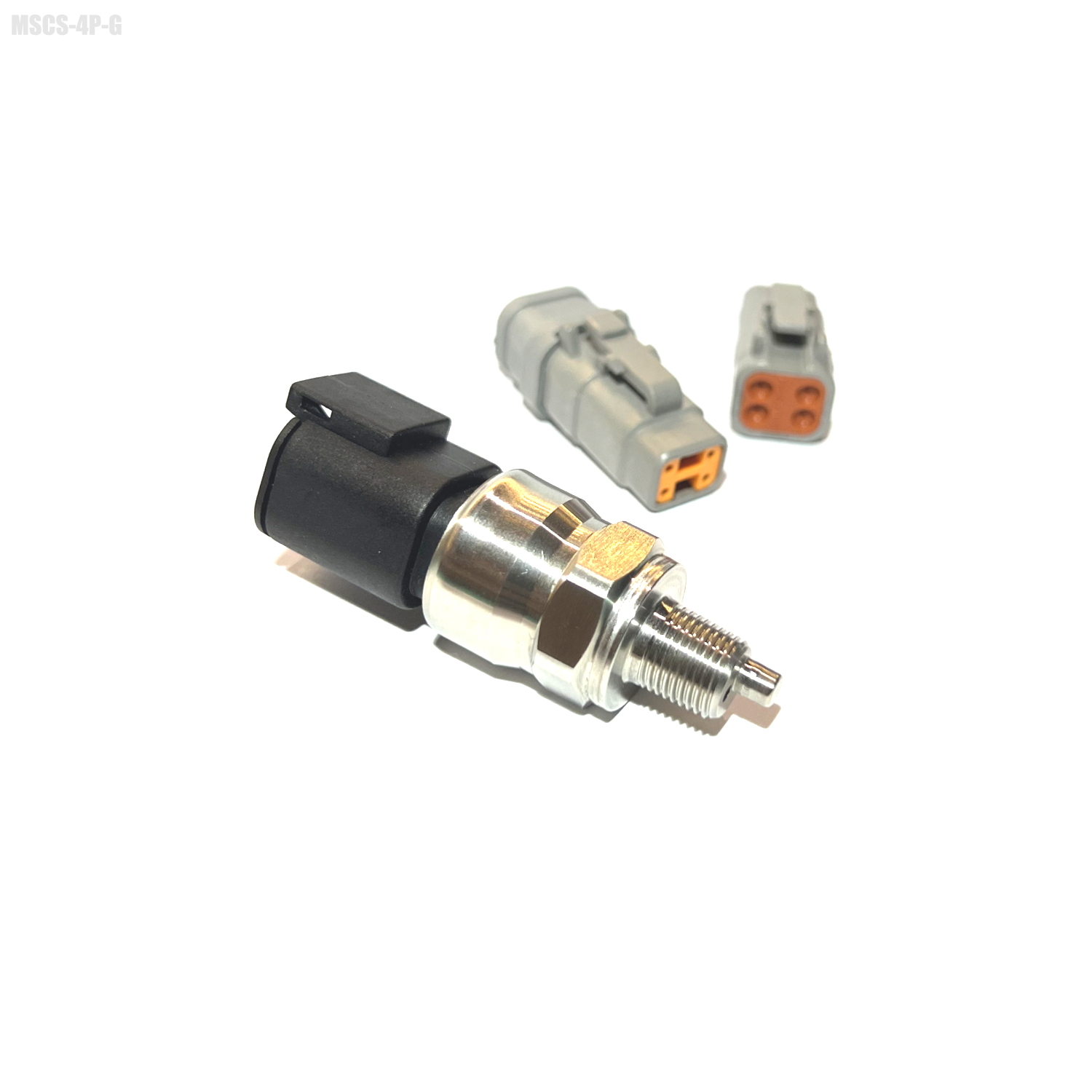

MSCS-4P-G10-N8 [PDF][][][][XLS][][][] 'FLUID Combo' 4Pin DTM Connector, 1/8"NPT, 10BAR GAUGE PRESSURE, Closed Element -40 to 150degC (-40 to 284degF) |
 [IMG] |

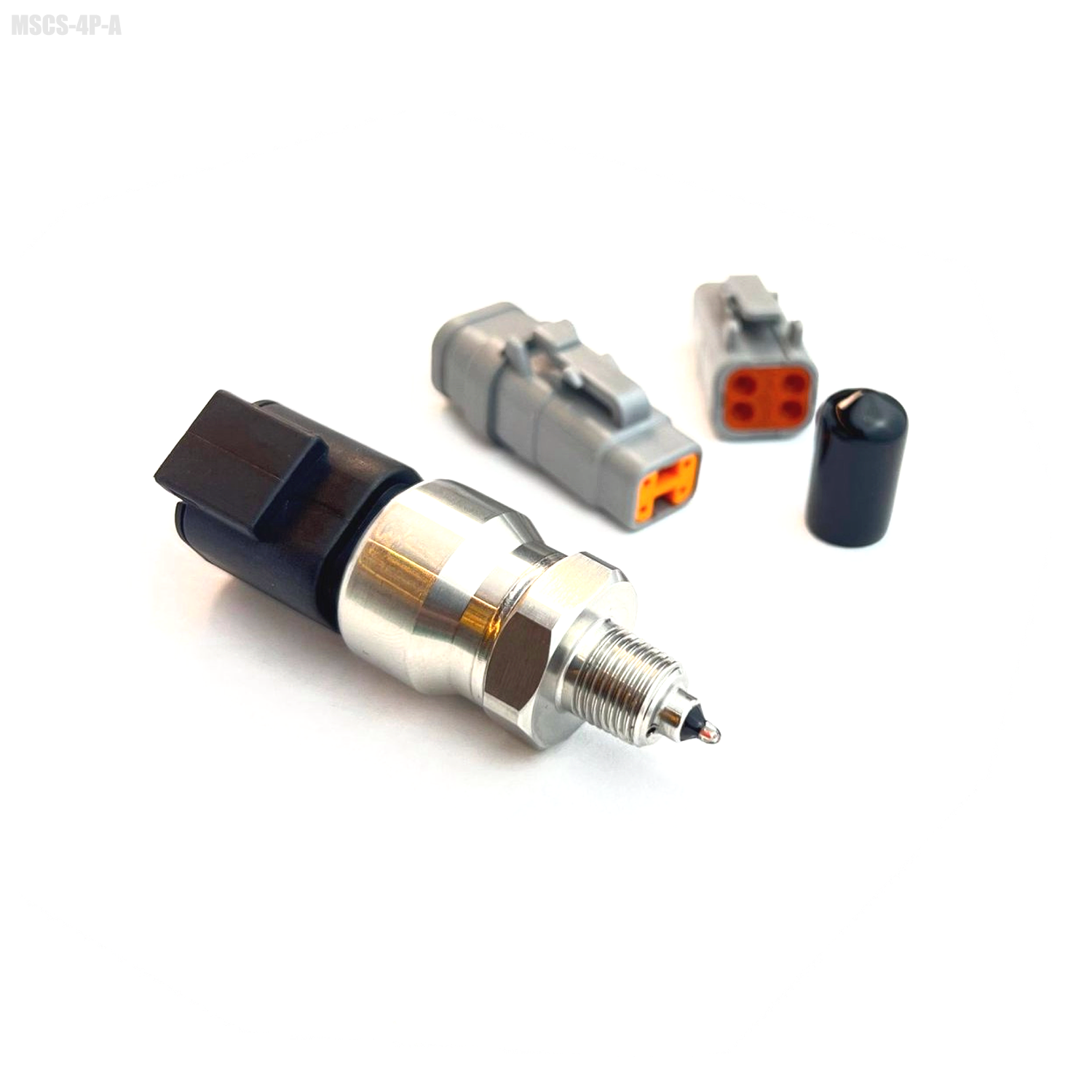

MSCS-4P-A05-N8 [PDF][][][][XLS][][][] 'TMAP Combo' 4Pin DTM Connector, 1/8"NPT, 5BAR MAP / ABSOLUTE PRESSURE, Open Element -40 to 150degC (-40 to 284degF) |
| Deutsch DTM 4 Pin Connector | Shell / Bootable Shell / Front Pin Lock / Socket |
| Calibration Tables | [FLUID] [TMAP] |
| LEGACY / RESOLD |
| [PDF] HELLA M12 'Long Nose" Air Temperature Sensor |
| [PDF] GM ACDELCO M14 Air Temperature Sensor |
| [PDF] GM ACDELCO 3/8" Air Temperature Sensor |
| [PDF] BOSCH KNOCK KS4-P |
| [PDF] BOSCH COMBINATION PST-F1 |
| [PDF] CONTINENTAL FLEX FUEL CONTENT SENSOR |
| [PDF] MAC VALVE 35 SERIES 3 PORT SOLENOID (5.4W) |
| [PDF] MAC VALVE 35 SERIES 3 PORT SOLENOID (12.7W) |
| [PDF] MAC VALVE 46 SERIES 4 PORT SOLENOID (5.4W) |
| ACCESSORIES / MISC |
| [PDF] 2-12 Position DTM Trim Dial |
| [PDF] 1JZ/2JZ-GTE VVTi/Non-VVTi Igniter Delete Patch Kit |
| [PDF] 1/2JZ Idle Air Control Valve - ORB8, Connector |
| [PDF] Remote Mount Universal Idle Air Control - ORB8, Connector |
| [PDF] Heavy Duty Bulkhead/Firewall Isolator Electrical Terminal |
| [PDF] Ethanol & AFR Dual Gauge |
| [PDF] FLEX FUEL CONTENT BRACKET |
| [PDF] MAC VALVE 35 SERIES 3 PORT SOLENOID BRACKET |
| [PDF] MAC VALVE 46 SERIES 4 PORT SOLENOID BRACKET |
